Exterior Highlights
Interior Highlights
Technical Specification

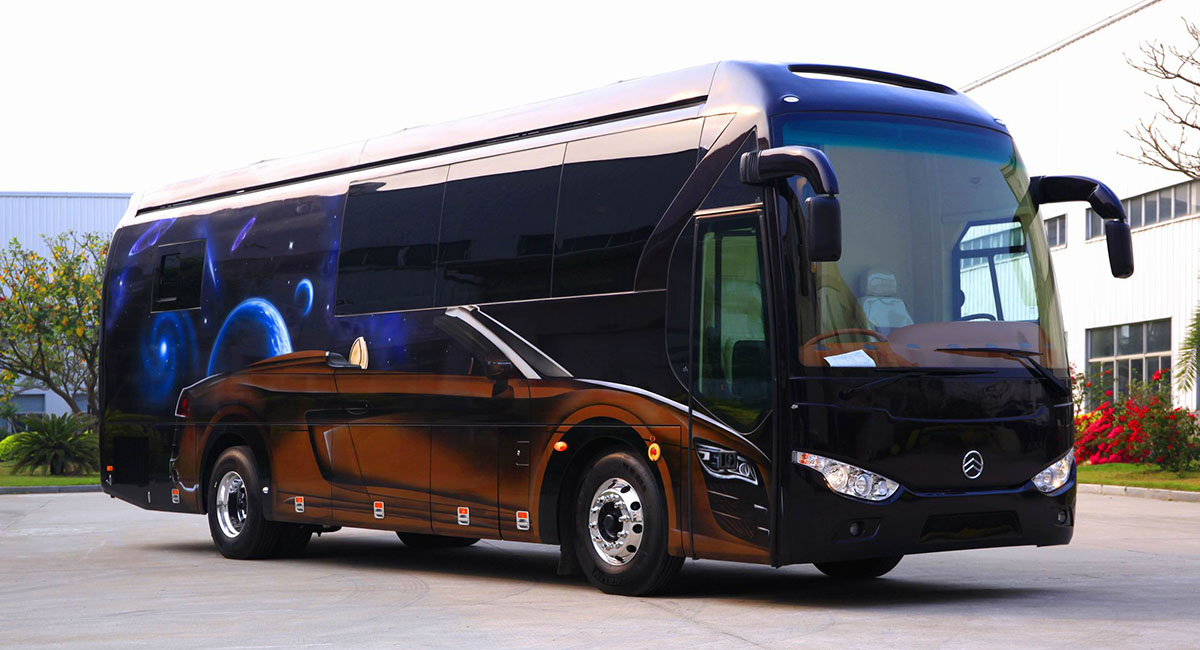

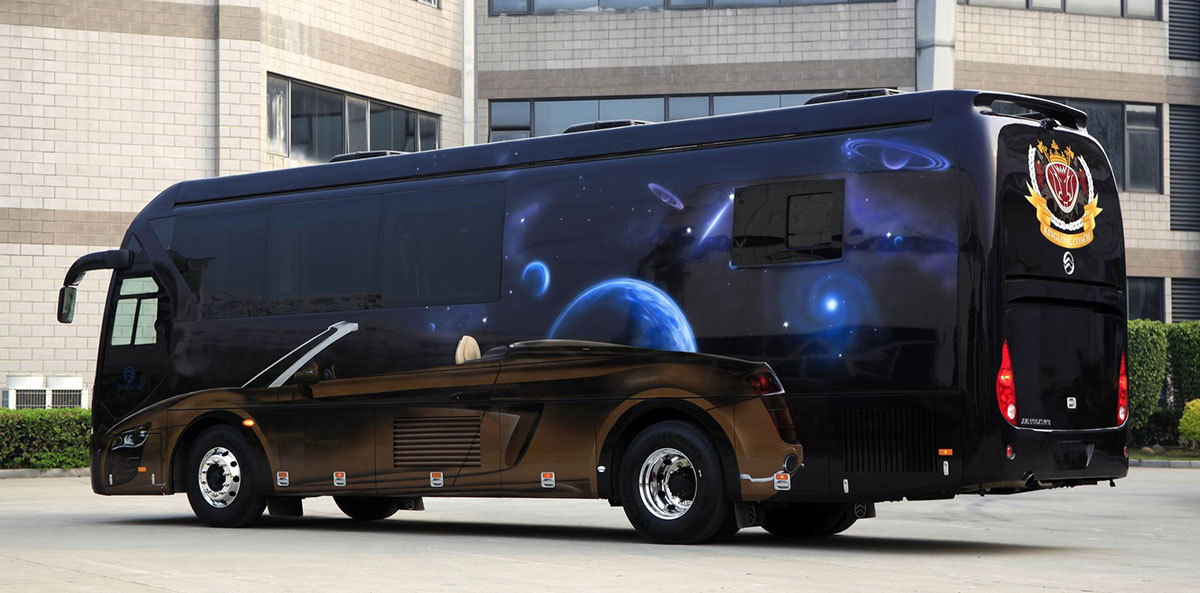

Specification of RV6113-10 (with Golden Dragon chassis)
Item
Specification
Brand
Dimensions
L*W*H(mm)
10730*2500*3760
Structure
Monocoque
Power/Chassis/Body system
Engine
Dongfeng Cummins ISDE270 40, rated power: 198KW（270PS)/2500rpm
Cummins Euro.IV
Displacement: 6.7L, fuel consumption: 14L/100km
Transmission
Allison automatic transmission
Allison
Fuel tank(L)
350L
Suspension
6 airbags air suspension
Axle
Dongfeng axle 153
Dongfeng
Steering
ZF power steering gear
ZF
Brake system
Front disc rear drum brake, imported auto slack adjuster, WABCO ABS
WABCO
Tires
Michelin tires
Michelin
Wheel rim
Alcoa wheel hub and hub cover
Alcoa
Central lubrication system
Available
ECAS
Available
Reverse monitor
LCD colored reverse monitor (integrated with Alpine DVD & navigation)
Alpine
Air conditioning/Ventilation system
Air conditioning
Coleman Motorhome A/C 8373 (3 units)
Coleman
Motorhome A/C (Outlet of Instrument Pannel)
Exhaust fan
Exhaust fan (2 units)
Electrical equipment
High Definition Television
SONY LED TV(26') front 2 units & rear 1 unit
SONY
Satellite TV
DIBSAT satellite TV system (available in both front and rear areas)
DIBSAT
Alpine DVD IVA-502E (front area)
Alpine
Stereo system
Alpibe DVD IVA-520C (rear area)
Alpine
Alpine PH800 audio processor (1 set)
Alpine
Alpine amplifier( PDX-F6 2 units；PDX-M12 1 unit )
Alpine
Alpine 6.5" loudspeaker；Alpine 12" woofer；
Alpine
Kitchen appliance
Panasonic microwave oven
Panasonic
Coffee machine
Refridgerator 110L
Eletrical kettle
Electrical system
Diesel Alternator
Imported Motorhome Diesel Alterantor (ONAN 8KW)
ONAN
AOTIEMA Battery
AOTIEMA
Invertor Charge System
Invertor Charger (3000W),used for American Army
6-GFM-150 Battery,4-Piece, Valve control sealing type
Network Syster
3G wifi Network System
GPS
Alpine Integrated DVD & navigation (Mounted on Instrument Pannel) 1 set
Alpine
Outside Electric Power Supply
Outside Electric Power Supply System
Protection of Electric Power Supply
Protection Device( Anti Wave, over flowed, over loaded etc..)
Table Connector
Connector of electric power supply and network
Controlling system
Central Computor Control System
SPYDER CAN-BUS control system
Control System: Lighting, curtain ect.
Intrument Monitor system: Electric power supply system, interior temperature, clean water tank, waster water tank etc..
Water conduit system
Intelligent Water Pump
10011(55-ARV-12)
Pressure tank
3400-002
Water conduit connector and parts
SHURflo
Steelness steel Clean Water Tank
180L
Steelness steel Waste Water Tank
180L
Faucet for Toilet
1set
Repair kit for Toilet
1set
Electric closestool
TECMA DC24V
Auto Waste Exhaust device
( including control system)
Pneumatic control 1set
Fuel Heater
Supplied by the original vehicle

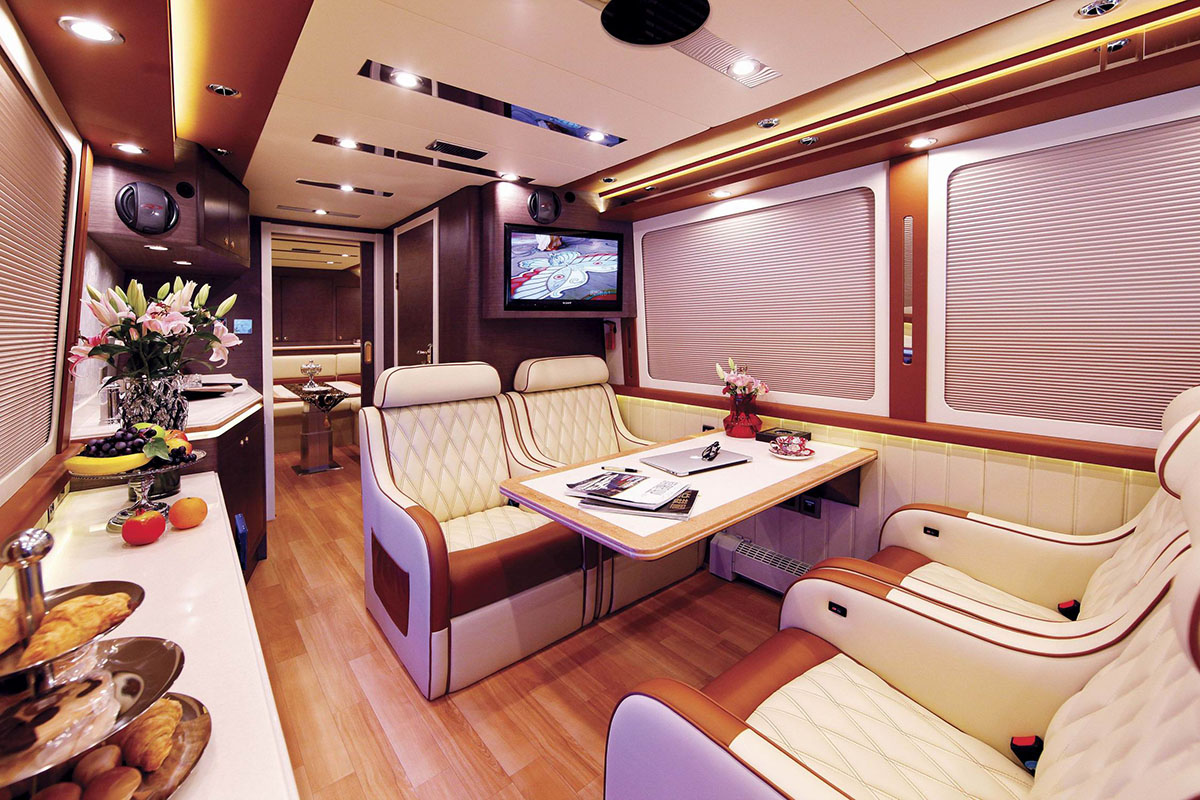

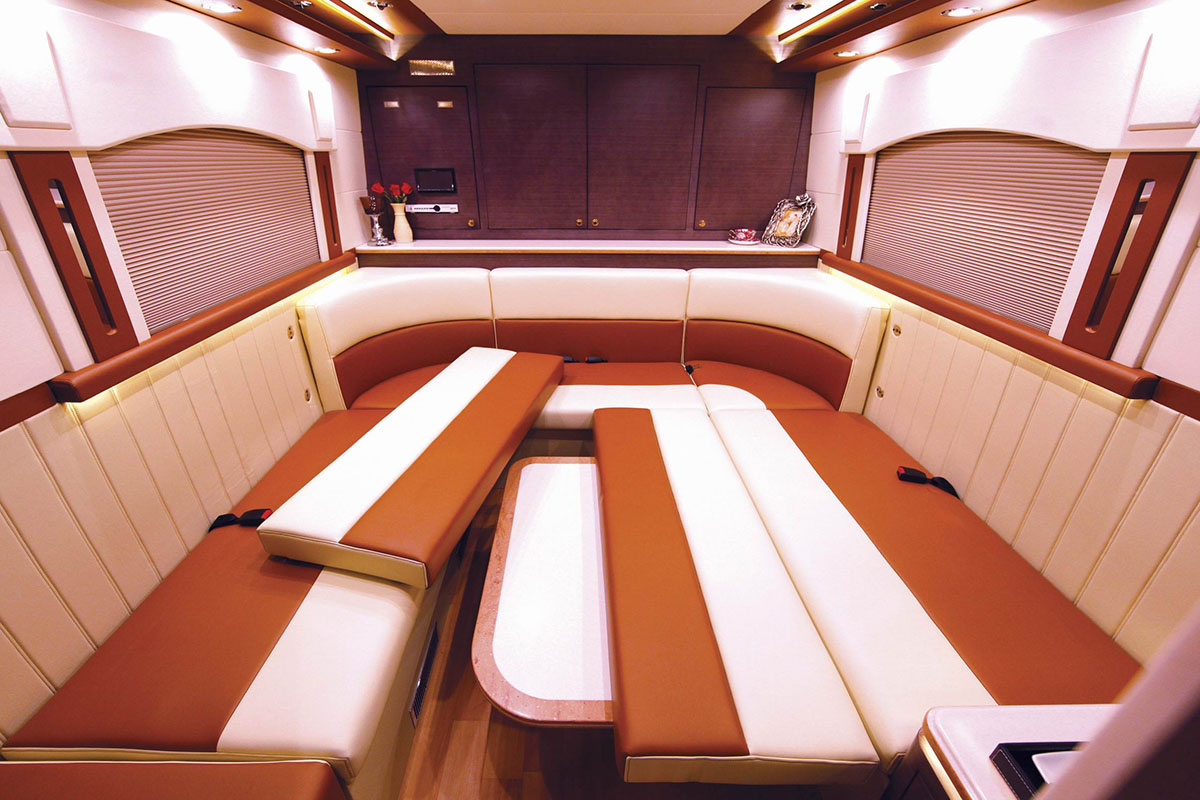

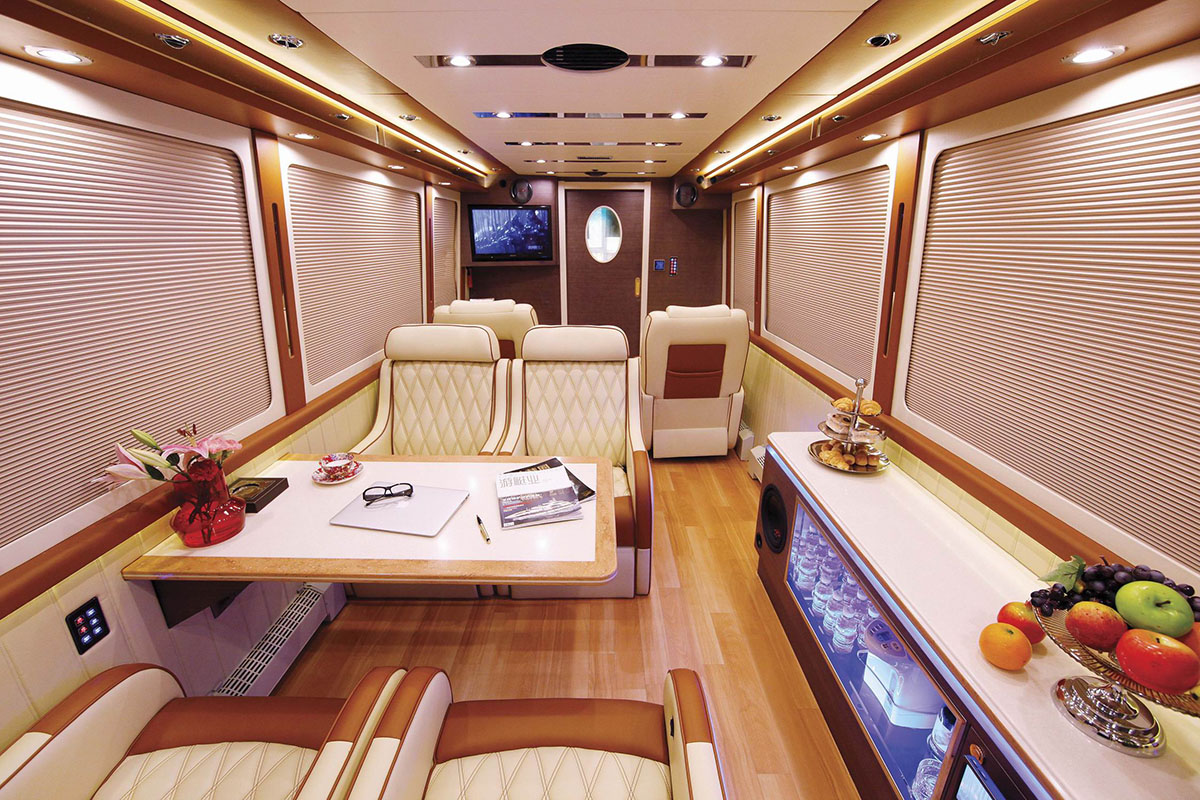

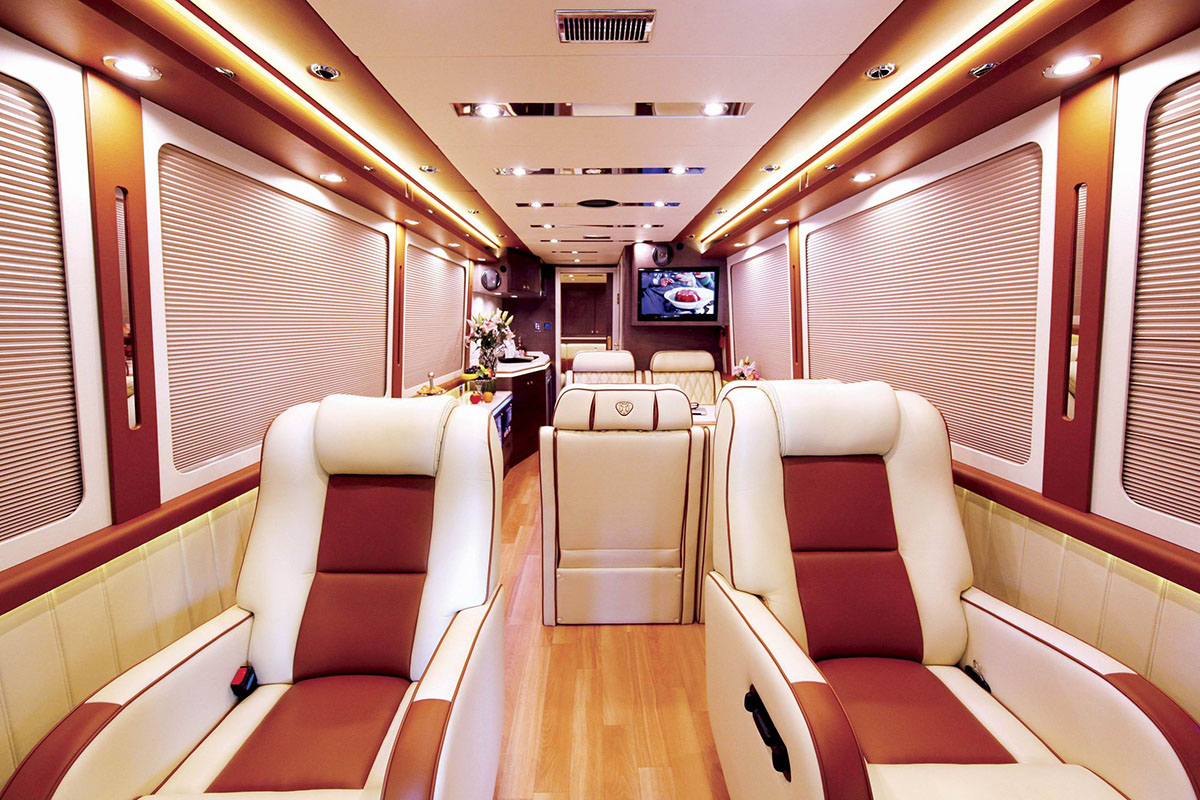

Interior trim and furniture
Isolation Wall
Isolation Wall Hand Pushed/pulled 2 pieces
Seats
Single luxuary seats with imported leather cover 2 sets
Twins seats with imported leather cover 2 set
6-person U-Type Sofa with imported leather cover
Kitchen Workbench
Wooden Cabinet and Artificial Marble 1set
Kitchen hanging case
Woonden Painted
Bar
Wooden Cabinet and Artificial Marble 1 set
Dining Table
Artificial Marble 1set
Luxuary single seat, small desk
Artificial Marble 1 set
Electric Lifting table
Electric Lifter and Artificial Marble 1set
26'TV Cabinet
Woonden Painted 3sets
Stereo Cabinet
Woonden Painted 2 sets
Cabinet, side of U-type sofa
Wooden Cabinet and Artificial Marble 2sets
Cabinet, rear of U-type Sofa
Wooden Cabinet and Artificial Marble 1 set
Device Cabinet of Isolation wall
Wooden Cabinet and Artificial Marble 1set
Floor
Graining plastic floor cover
Toilet
Toilet Kit
Curtain
Electric Control Curtains
Leather Trim
Suspended ceiling with imported Leather cover
Driver area decorated by imported leather
Lighting
Interior lighting
Whole Cabin Lighting
Exterior equipment
Design
Fiber Glass Roof Design
Passener Door
Steelness Step Trim
Design
Baking Paint, Personal Design
