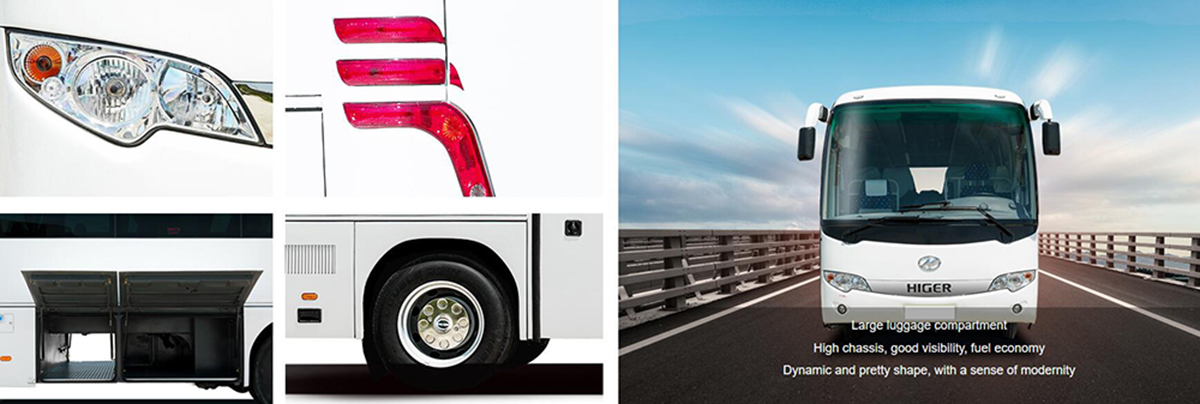

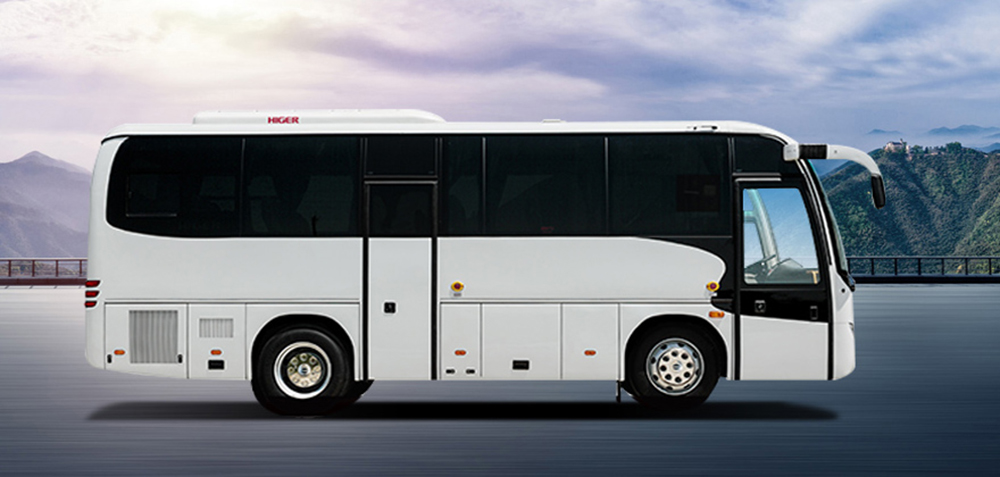

Exterior Highlights

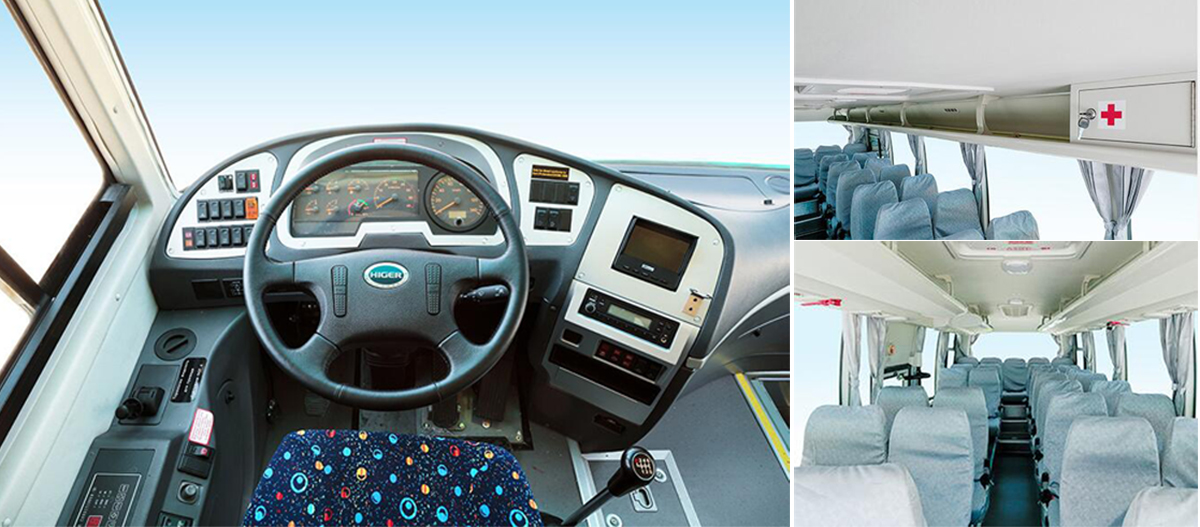

Interior Highlights
Specification
Wheelbase (mm) | 6150 |
Overhang front/rear (mm) | 2450/3400 |
manufacturer's max. total mass | 18000 |
Maximum speed (km/h) | 100 |
Fuel tank capacity (L) | 360 |
Chassis | |
Engine | YC6L330-42 |
Clutch | SACHS clutch |
Gearbox | ZF six forward gear manual gear box |
Retarder & ABS | TELMA retarder and WABCO ABS |
Propeller shaft | Strengthen propeller shaft |
Front axle | Fangsheng front axle(Drum) |
Rear axle | Fangsheng rear axle(Drum) |
Suspension system | CORPO Air suspension |
Braking system | Dual-circuit service brake, spring energy parking brake |
Steering system | ZF Power steering gear |
Tyre & Wheel | 295/ 80R22.5 tyre |
Electric system | 24V |
Accumulator / Generator | 24V |
Other facilities | Stainless steel wheel cover With ABS sensor |
Single door | |
Body | |
Air conditioner | 32000kCal/h, Bock compresspr |
Bus Reverse Monitor | Color reverse camera(G-BOS:CCTV) |
Digital Clock/lighting system | Equipped |
Sun visor | Manual sun visor |
Audio and video system | DVD |
Curtains for side window | Cloth folding window curtain |
luggage rack | Equipped( with cover) |
Seats | VEGA seat(Fabric) |
Floor | Anti-attrition floor leatheroid (Gray) |
Passenger door | Remote control |
Window | Seal window glass ,Rear window has a sliding glass Clear glass |
Emergency roof exit | 2 emergency roof exit |
Rear-view | Electric |
Automatic fire extinguisher device in engine compartment | Equipped |
Safety hammer | Equipped |
Fire extinguisher | 2Kg fire extinguisher |
