Jiexin roof mounted air conditioner for 10-12m bus
|
Air conditioning system configuration Model：DJPA-L |
|||||
|

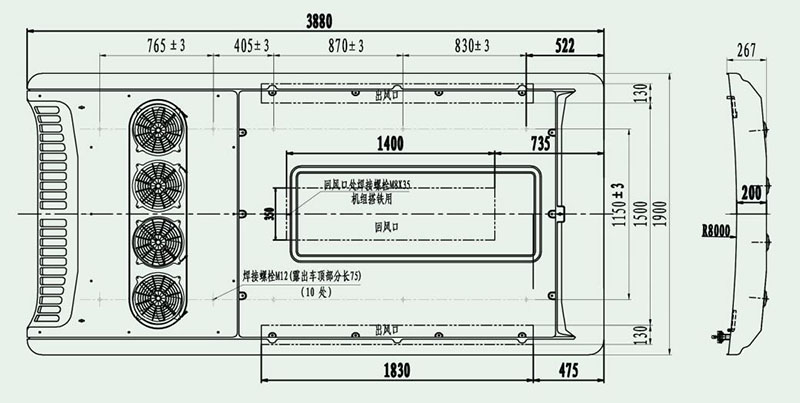

1、roof mounted AC drawing （Dimension：3880 x 1900 x 200 mm）
|
|||||
|
2、Main technical parameter Refrigerating capacity：30000kcal/h Refrigerant：R134a Compressor displacement: 611cc/r Standard filling volume：5.8 kg Evaporator air volume：6000 m3/h System power consumption：≤ 100A（24V） Condenser air volume：8400 m3/h Total weight：≤ 200 kg |
|||||
|
3、System main configuration |
|||||
|
Item |
Brand |
Feature |
QTY |
UNIT |
|
|
Compressor |
AC compressor |
BOCK/BITZER |
Imported compressor with high efficiency, stable performance and high reliability |
1 |
UNIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Top AC |
Evaporate core |
JIEXIN |
Copper tube, aluminum fin type |
2 |
PIC |
|
|
Condenser core |
JIEXIN |
Multi-circuit parallel flow aluminum tube type |
1 |
PIC |
|
|
Evaporate fan |
JIEXIN |
Imported bearings, carbon brushes, commutators, large air volume, low noise, long life |
8 |
PIC |
|
|
Condenser fan |
JIEXIN |
Imported bearings, carbon brushes, commutators, large air volume, low noise, long life |
4 |
PIC |
|
|
Expansion valve |
FUJIKOKI
|
high precision |
2 |
PIC |
|
|
Pressure Switch |
LEILI |
Composite pressure switch with high sensitivity
|
1 |
PIC |
|
|
Drier |
HONGSEN |
Low flow resistance, high adsorption capacity
|
1 |
PIC |
|
|
Fresh air system |
MABUCHI |
Japanese motor, high reliability
|
1 |
PIC |
|
|
AC Housing |
JIEXIN |
LFT moulding |
1 |
SET |
|
|
|
|
|
|
|
|
Electric |
Control Panel |
HENGTAI
|
PCM211 digital display +Rotate button |
1 |
PIC |
|
|
Socket |
AMP |
Silver plating, acid alkali salt corrosion resistance, dustproof and waterproof |
1 |
SET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pipe |
Aluminum Pipe |
JIEXIN |
Aluminum Pipe |
1 |
SET |
|
|
Soft pipe |
CODAN |
Danish joint venture brand, High voltage resistance, good performance |
1 |
SET |
|
|
|
|
|
|
|
|
Accessory |
Air return grille |
JIEXIN |
Aluminum alloy material, anti-bacterial and anti-virus filter screen, easy to clean |
1 |
PIC |
|
|
Drain pipe |
JIEXIN |
Nylon steel pipe
|
1 |
SET |
|
|
Clamp |
JIEXIN |
Stainless steel material
|
1 |
SET |
|
|
Install accessory |
JIEXIN |
Sealing strip, gasket, etc
|
1 |
SET |
