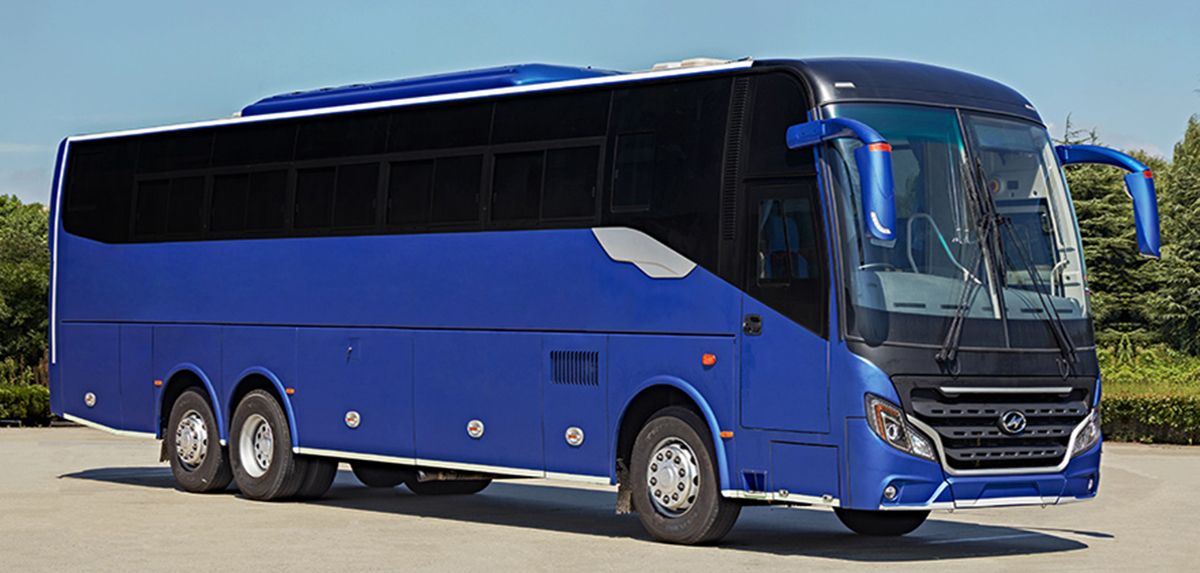

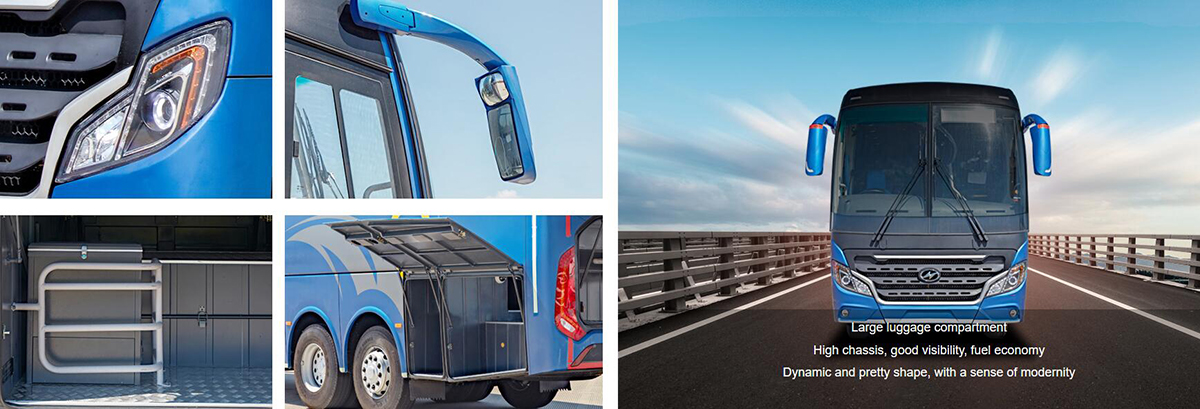

Exterior Highlights

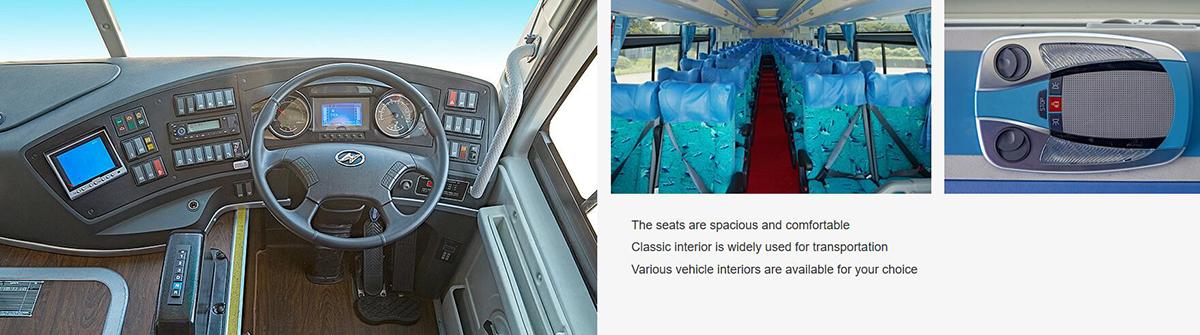

Interior Highlights
Specification
Wheelbase（mm
5800+1300
inner height(mm)
1930
track front / rear/ tag(mm)
2062/1860/2085
overhang front / rear(mm)
2223/3154
mini. ground clearance(mm)
≥220
Approach / departure angle °
≥12/ ≥ 11
manufacturer's max. total mass（kg）
21800
front / rear /tag axle（kg）
7500/ 13000/ 5500
max. speed(km/h)
130
max. gradeability %
25
mini. turning circle diameter(m)
≤22
fuel consumption [ rated condition ](L/100km)
≤26
max. stopping distance [ full load ] （m）
≤10 30km/h)
tfuel tank capacity (L)
800
engine model
Dongfeng Cummins L360 20
engine type
in line 6 cylinders water cooling supercharged
engine location
front
cylinder number
6
engine displacement (L)
8.9
bore x stroke (mm)
114 x 145
max. power (hp/rpm)
264 / 2200
max. torque (Nm/rpm)
1400 / 1300-1500
fuel type
diesel
emission standard
Euro II
BODY
Air conditioner
32000kCal/h, Bock compresspr
Bus Reverse Monitor
Color reverse camera(G-BOS:CCTV)
Digital Clock/lighting system
Equipped
Sun visor
Manual sun visor
Audio and video system
DVD
Curtains for side window
Cloth folding window curtain
luggage rack
Equipped( with cover)
Seats
VEGA seat（Fabric）
Floor
Anti-attrition floor leatheroid （Gray）
Passenger door
Remote control
Window
Seal window glass ,Rear window has a sliding glass Clear glass
Emergency roof exit
2 emergency roof exit
Rear-view
Electric
Automatic fire extinguisher device in engine compartment
Equipped
Safety hammer
Equipped
Fire extinguisher
2Kg fire extinguisher
