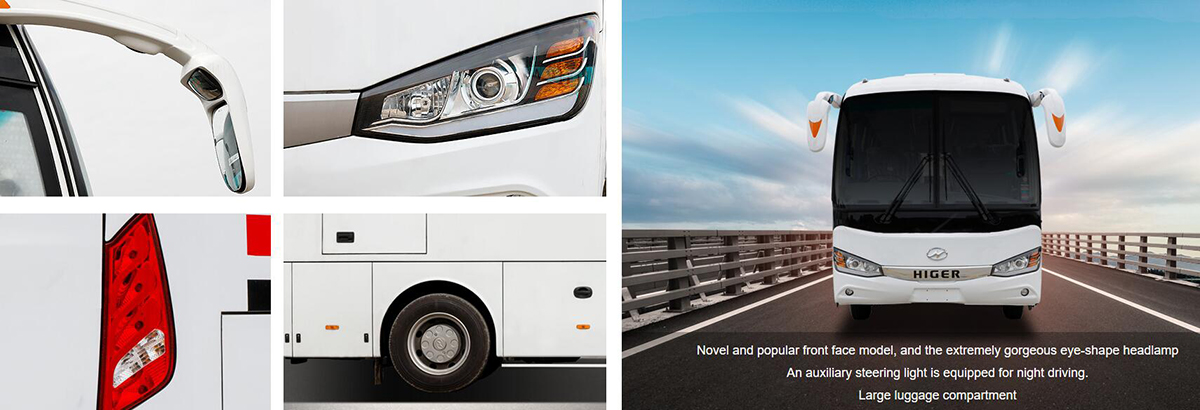

Exterior Highlights

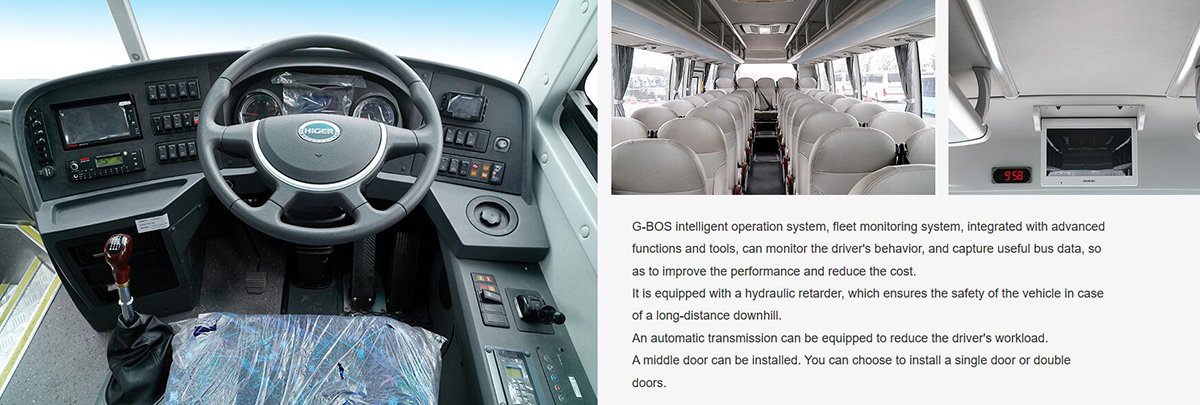

Interior Highlights
Specification
Wheelbase（mm）
4780
Track Front / Rear(mm)
2037/1866
Overhang Front / Rear(mm)
1842 / 2860
mini. ground clearance(mm)
220
Approach / departure angle °
≥10° / ≥9°
Gross Vehicle Weight(GVW)（kg）
13700
Max. speed (km/h)
110
Max. gradeability %
25
Fuel tank capacity (L)
260
Chassis
clutch
SACHS ∅430
Engine
YC6J245-30 (245hp, China III)，WP7.270E51 (270hp, EuroV)
Transmission
6 speed MT/AT gearbox
Suspension
6×air bags with shock absorbers
front axle
4200kg, Drum
rear axle
9500kg, Drum
Tyres
275／70R22.5 (6+1 spare)
Retarder
Telema（1500N·M）/ Hydraulic
Others
Integrated steering box 、Dual-circuit service braking system、Automatic slack adjuster、 ABS、Chassis CAN BUS Electrical System
Body
AS / Heater System
TCR938 overhead & independant（18000kcal/h，Bock compressor ）/ Option
Passenger seat
Luxury & adjustable BA02
Passenger door
Front pneumatic out-swing door ( remote control lock ); Middle door(option)
Windows / Emergency roof exit
Enclosed single layer side window / Roof exit with ventilation fan
Audio-visual system
DVD，19’LCD
Rear-view
Electric rear-view mirror with defroster
Paint
Solid color paints
Luggage compartment door
Aluminum hinged luggage compartment door
Others
Wearable floor leatheroid 、Both sides luggage rack、Cloth curtain、High Mount Stop Lamp、Digital clock
