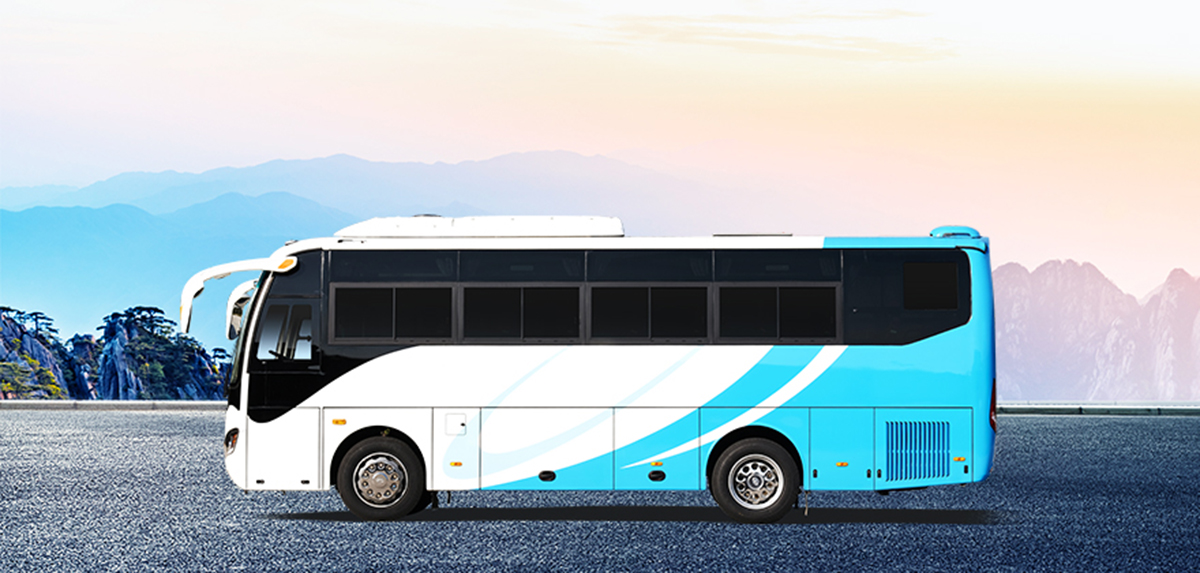

The new generation of high-end minibus, with the internationalleading design concept, has vigorous and round lines, giving the products asense of movement and strength, and showing elegance and atmosphere. At the same time, the shape has a goodaerodynamic coefficient, which can reduce the air resistance when driving athigh speed. The high chassis design makesthe vehicle have good passability and provides the driver with a wide driving fieldof vision. The vehicle optimizes the integral space design, with the highestspace utilization rate, ensuring that the number of seats in the same mileagelevel is leading in the market and the carrying capacity is the largest.

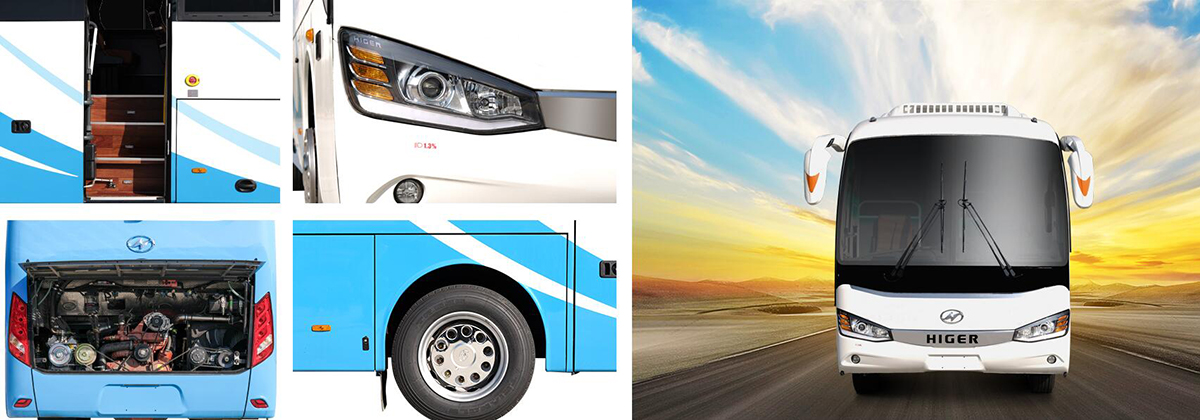

Exterior Highlights

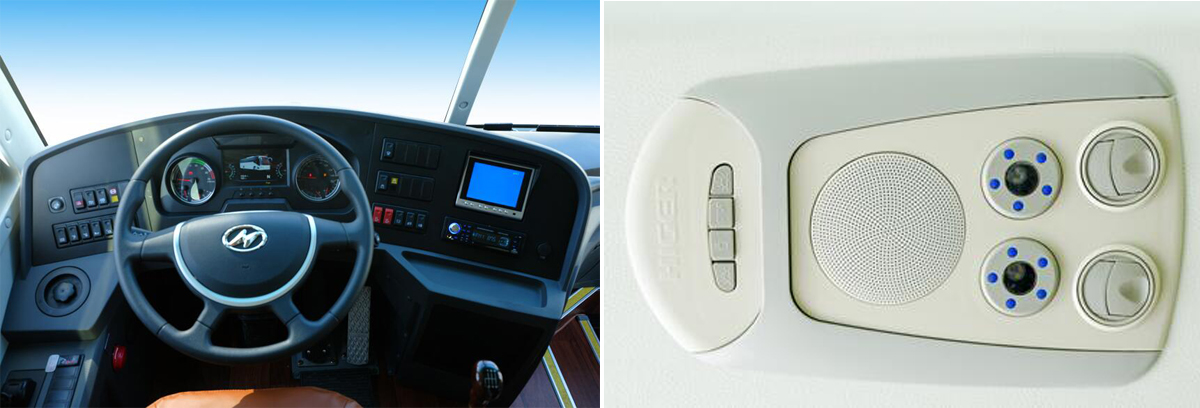

Interior Highlights
Specification
Wheelbase(mm)
4100
Max.speed(km/h)
110
Gross vehicle weight(Kg)
13700
Chassis
Engine
Yuchai YC6J230-20 [230 CV, EURO II]
Clutch
SACHS German Φ395mm
Gearbox
6-speed manual transmission (QJ S6-80), ZFtechnologies.
Suspension
Alloy steel leaf spring suspension with reinforcedsprings
Axle
Dongfeng DANA Front disc and rear drum axle
Braking
Dual-circuit service brake, spring energy parkingbrake , WABCO ABS，with retarder
Steering
ZF Power steering, Right hand drive
Tyre
Bridgestone 275/70R22.5 tubeless tire
Others
ALCOA aluminum rim;
Enlarged air filter
Automatic engine extinguisher
Maintenance-free battery
Body
A/C
Enhanced air conditioning for Africa
Seats
35+1,grammer driver seats3+2 arrangement,non-adjustable seats with seat belts
Door
Pneumatic expansion front door with remote control, middledoor, safety Door
Window
Sliding window in grey colour, tinted glass, windowcurtain，1 emergency exit roofwindows with electric fan
Luggage Rack
Integrated inner luggage rack with
1. reading lamp
2. cool air outlet
Audio-visual
DVD player 19’ folding LCD displayscreen
Microphone system
Rear-view
Luxury Electrical rear view mirror
Floor
Imitation wood-grain Anti slip floor cover, waterproof, Step lamp
Others
Air luggage door
USB chargers
Double-sided inner luggage rack
Ventilation holes in the enginecompartment door
Improvement in Africa: enlarged air filter, enlarged water tank,enlarged fan; enlarged radiator
