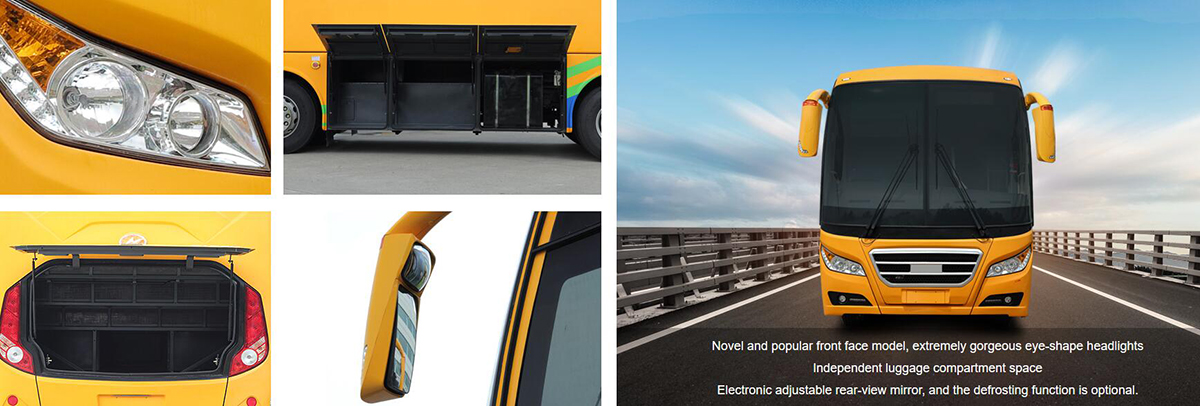

Exterior Highlights

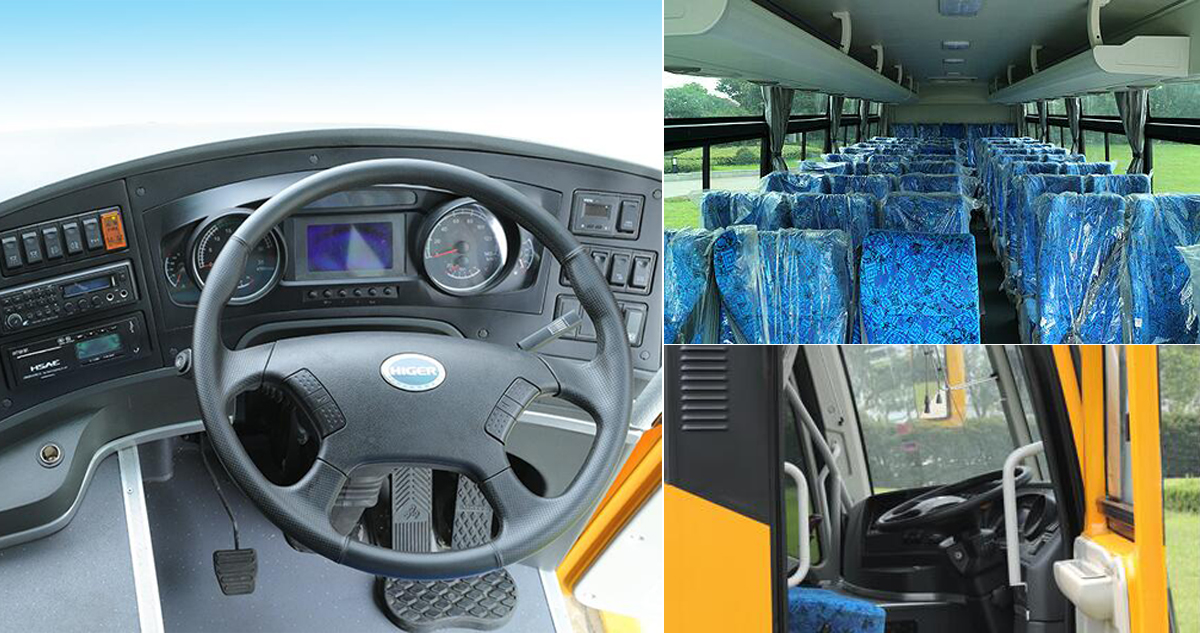

Interior Highlights
Specification
Wheelbase（mm）
4500
Tread Front/Rear(mm)
22020/1800
overhang front / rear(mm)
2050/2750
mini. ground clearance(mm)
170
Approach / departure angle °
≥15/≥11
manufacturer's max. total mass（kg）
13500
max. axle load front / rear（kg）
5500/8000
max. speed(km/h)
120
max. gradeability %
41
turning radius(m)
≤18.5
fuel consumption [ rated condition ](L/100km)
≤22
max. stopping distance 30km/h [ full load ] m
≤10
tank total capacity (L)
220
engine model
Dongfeng Cummins EQB210-20 [ 210Ps ]
engine type
in line 6 cylinders water cooling supercharged
engine location
rear
cylinder number
6
engine displacement (L)
5.883
max. power (hp/rpm)
155 / 2500
max. torque (Nm/rpm)
700/1500
fuel type
diesel
emission standard
Euro II
Chassis
clutch
ISACHS diaphragm spring clutch
gearbox
Chinese 6 speed manual gearbox
retarder & ABS
Chinese retarder+WABCO ABS
propeller shaft
Strengthen propeller shaft
front axle
Chinese front axle
rear axle
Chinese rear axle
suspension system
Multi-leaf spring suspension
braking system
dual-circuit service braking system; energy storage spring parking brake
steering system
power –assist steering gear
tyre & wheel
11R22.5 tubeless tire; steel wheel rim
Body
Air conditioner
for option( Higer AC TCR09)
audio-visal system
Hard disk player+19 inch LCD
lighting system
Single style ceiling lamp; Step lamp and high position braking lamp
luggage rack
double side luggage rack
seats
Ddriver seat + adjustable 2+2 seats
floor
Domestic floor leatheroid
door
Front pneumatic out swing door
window
Upper sliding, lower sealed side window (Tinted color)
Driver side sliding window in aluminum rame;
one emergency exit roof windows without ventilation fans; two piece front windshield;Cloth curtain for side window
emergency exit
1 roof exit
rear-view
Electric rear-view mirror with defroster
luggage compartment
Integrated luggage cabin with floor leatheroid
others
Dual manual folding front sun visor; Air horn;Digital clock
