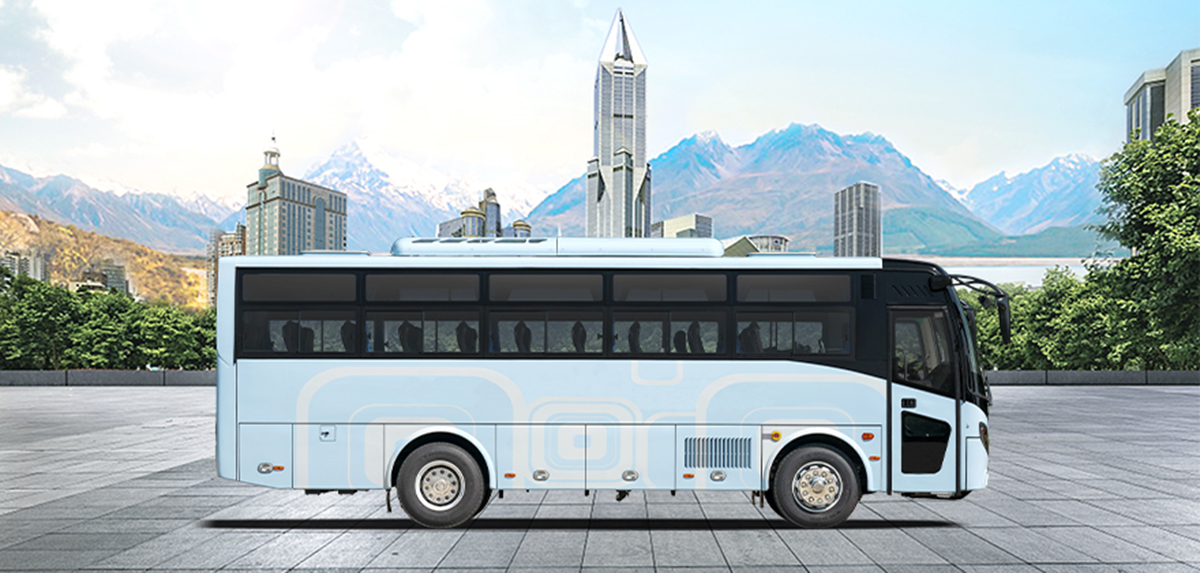

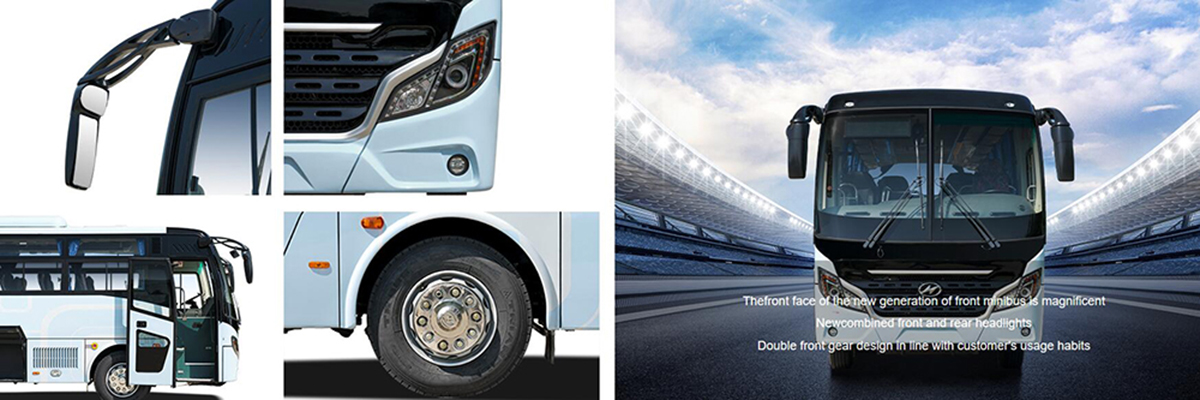

Exterior Highlights

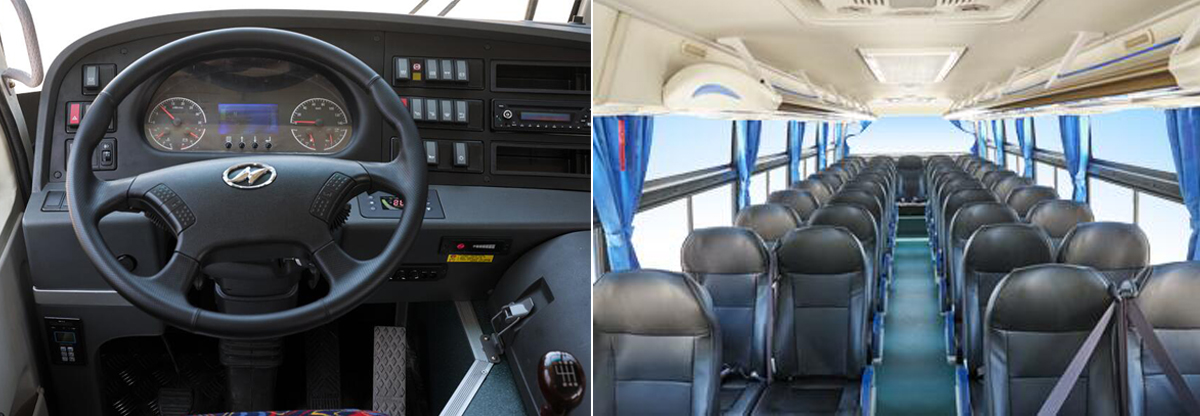

Interior Highlights
Specification
Mini. ground clearance(mm)
260
Approach / departure angle °
≥13/≥12
Manufacturer's max. total mass（kg）
14500
Max. axle load front / rear（kg）
6000/8500
Max. speed(km/h)
110
Max. gradeability %
≥30
Turning radius(m)
≤16
Fuel consumption [ rated condition ](L/100km)
≤21-24
Max. stopping distance 30km/h [ full load ] m
≤10
Tank total capacity (L)
400
Engine model
Cummins EQB210-20 [ 210Ps ]
Engine type
in line 6 cylinders water cooling supercharged
Engine location
front
Cylinder number
6
Engine displacement (L)
5.883
Fuel type
diesel
Emission standard
Euro II
Chassis
Clutch
SACHS diaphragm spring clutch
Gearbox
6 speed manual gearbox
Retarder & ABS
Retarder+ABS
Propeller shaft
Strengthen propeller shaft
Front axle
Drum front axle
Rear axle
Drum rear axle
Suspension system
Multi-leaf spring suspension/8 leaves
Braking system
Dual-circuit service braking system; energy storage spring parking brake
Steering system
Power –assist steering gear
Tyre & Wheel
8.25×22.5 tubeless tire
Body
Air conditioner
Tongchuang ESR10 air conditioner
Audio-visal system
Hard disk player+19 inch LCD
Lighting system
Single style ceiling lamp; Step lamp and high position braking lamp
Luggage rack
Double side luggage rack
Seats
Driver seat + adjustable 2+2 seats(Aisle seat with corner armrest）
Floor
Anti-attrition floor leatheriod
Door
Front pneumatic out swing door
Window
Up sealed down sliding side windows
Divided front windshield with defroster
Cloth curtain for side window
Emergency exit
Tne roof exits
Rear-view
Manual rear view mirror
Luggage compartment
Integrated luggage cabin with floor leatheroid
Others
Dual manual folding front sun visor
Digital clock
