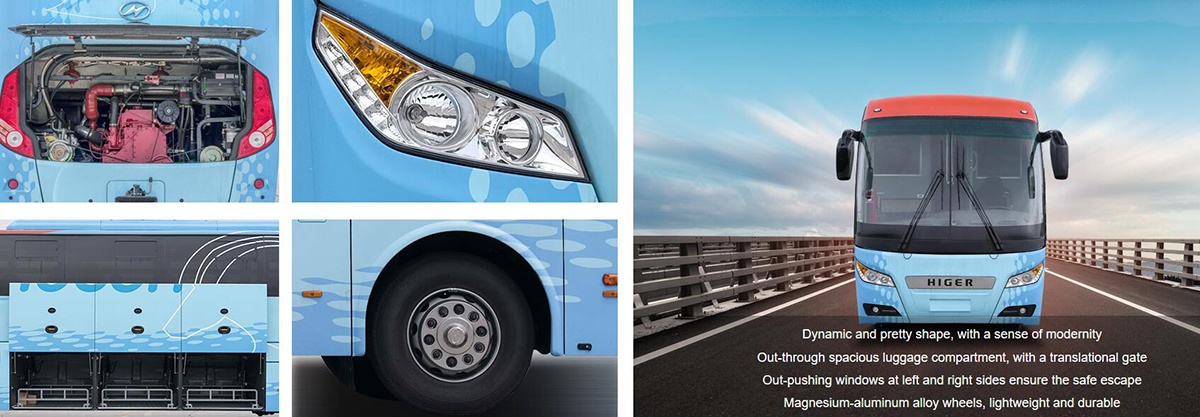

Exterior Highlights

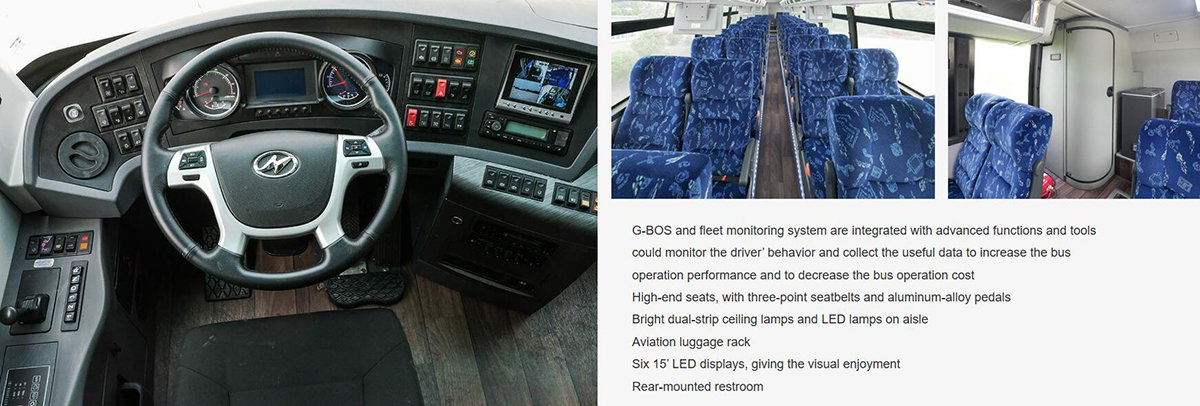

Interior Highlights
Specification
Wheelbase (mm)
6500+1500
Wheel tread front/rear (mm)
2054/1860（2080）
Overhang front/rear (mm)
2700/3000
Minimum ground clearance (mm)
195
Approach/Departure angle °
9°/9°
Gross vehicle weight (kg)
22750
Maximum speed (km/h)
120
Maximum gradability (%)
30
Fuel tank capacity (L)
390
CHASSIS
Engine
ISME385 30 (385hp, China III)， ISME420 30 (420hp, China III)，
Transmission
ZF12-speed AMT
Suspensions
Air suspensions (a total of 8 air pockets: 2 front ones, and 4+2 rear ones)
Front axle
6.5T with disc brakes
Rear/Support axle
13T with disc brakes/8.2T
Tyres
295/80R22.5 vacuum tyres
Retarder
Hydraulic retarder
Other facilities
ZF steering gear, pneumatic, dual-circuit, service brakes, WABCO ABS, chassis CAN bus
BODY
Air conditioning/heating system
TCR140 roof-mounted independent air conditioning system (36000 kcal/h, Bock/Bitzer compressor)
Passenger seats
Makepolo（type 1050）
Passenger doors
Pneumatic outward-swinging doors, front and intermediate (the front door is equipped with a remotely-controlled lock)
Side windows
Fixed, stuck, fully-closed side windows (but the driver’s window and the last windows on both sides consist of two panels
with the inner panel fixed and the outer panel movable. 2 emergency roof exits.
Audio and video system
Audio and video system
Rearview mirrors
Electrically-operated rearview mirrors (equipped with the defrosting function)
Other facilities
Wear-resistant floor leather, toilet, interior luggage racks (with covers) of the aircraft product quality, cloth curtain, and rotary compartment doors made of aluminum alloy
Two strip-type interior roof LED lights, roof LED lights for night travel, LED seat number plates, and aisle LED lights
