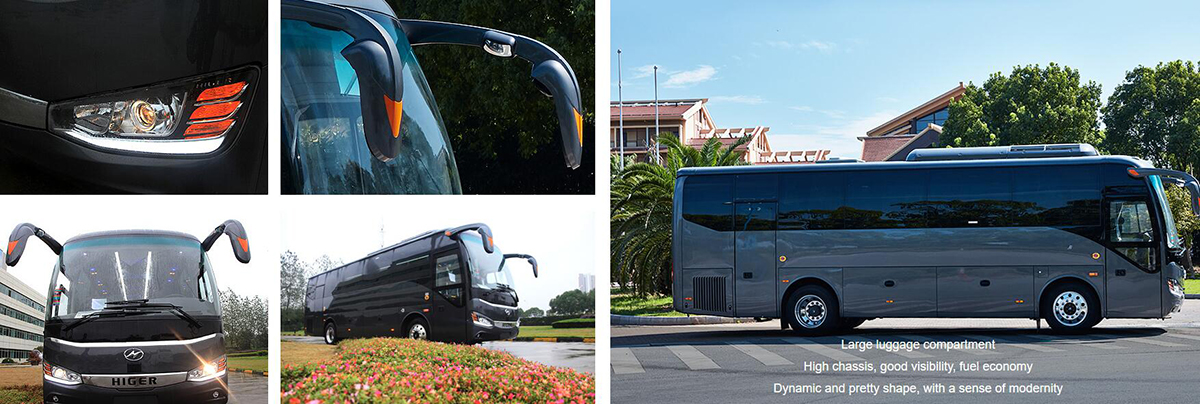

Exterior Highlights

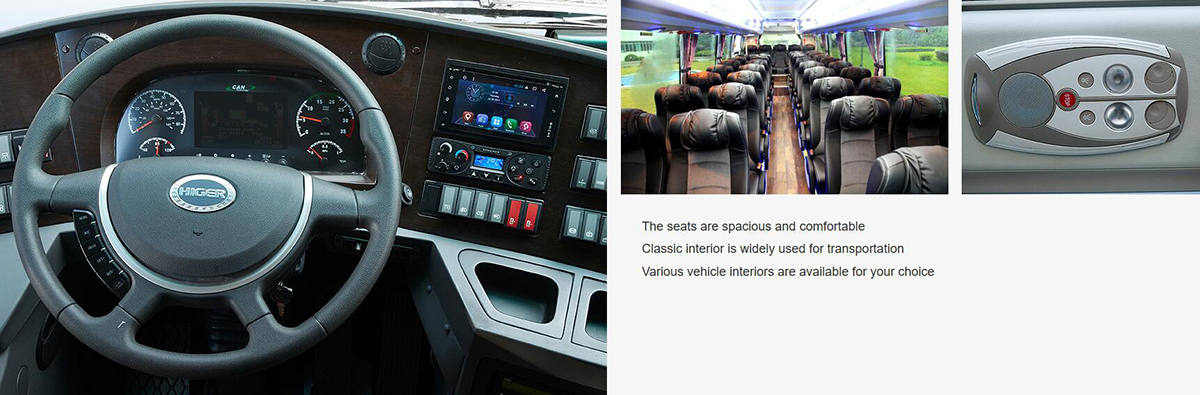

Interior Highlights
Specification
Wheelbase（mm）
4660
Front/rear wheel track(mm)
2065/1866
Front/rear overhang(mm)
1905/2760
Minimum ground clearance (mm)
185
Approach / departure angle °
10.5/9.5
Rated total mass（kg）
12900
Maximum vehicle speed(km/h)
100
Maximum gradeability %
30
Fuel tank capacity L
325
Chassis
Engine
ISB6.7E5 250
Front axle
Koeman independent front axle
Gearbox
ALLison T280R
Suspension
Front independent suspension, Rear air suspension
Rear axle
Dongfeng
Steering
BOSCH power steering;
Tyre
255/70R22.5
Others
All pressure double circuit brake、EBS、ESC、Hydraulic retarder
Body
Air conditioner
Genesis of air conditioning TCR938
Seat
Cloth or leather seats, Recline coach seats
Door
Single front-opening pneumatic outward swinging door
Window
Fully-closed bonded side-windows,Varus,kicking window
AV system
Radio
Rear-view mirror
Luxurious electric rear-view mirror (with defroster)
Floor
Flat floor
