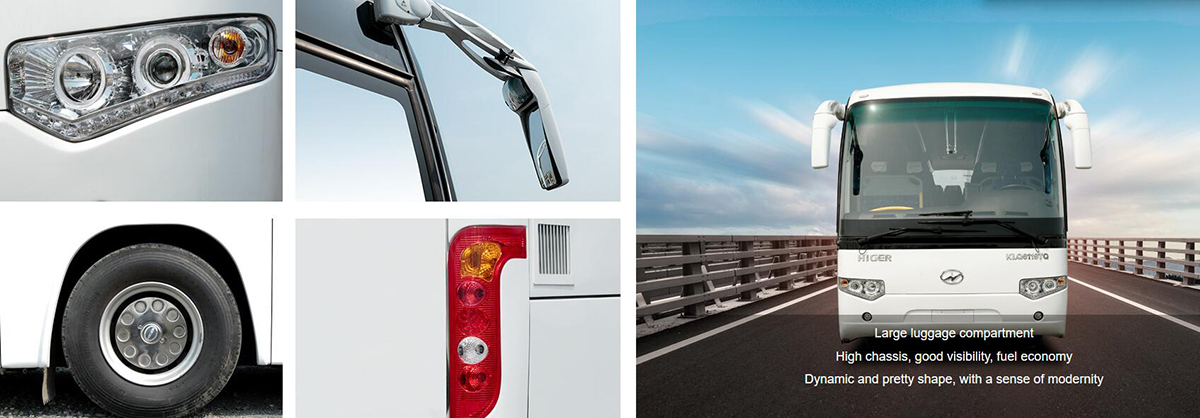

Exterior Highlights

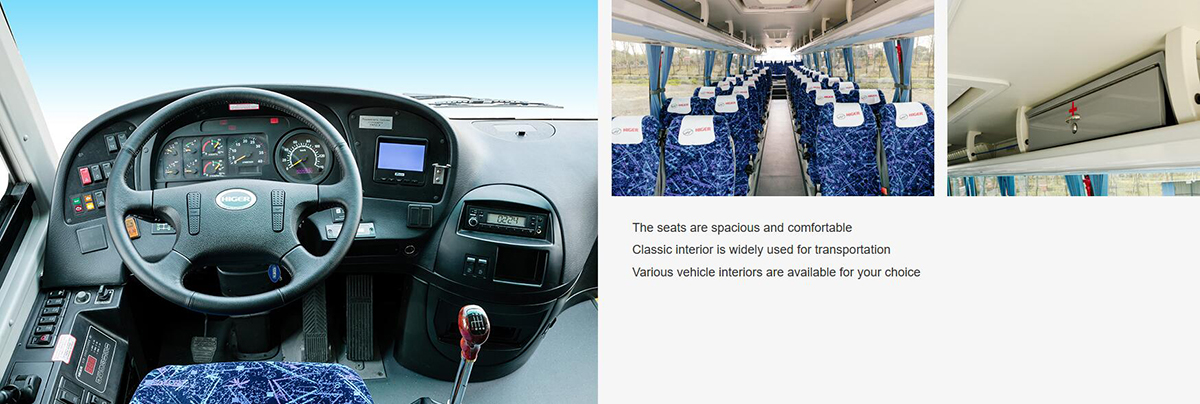

Interior Highlights
Specification
Wheelbase (mm)
5420
Wheel tread front/rear (mm)
2020/1860
Overhang front/rear (mm)
2160/3160
Minimum ground clearance (mm)
240
Approach/Departure angle °
10°/10°
Rated total mass
15500
Maximum speed (km/h)
110
Maximum gradability (%)
30
Fuel tank capacity (L)
360
Chassis
Engine+gearbox
Yuchai YC6A240-30 (240hp, China Ⅲ)+ Fastgear 6DS95T Series/ Fastgear 6DS130T series/ S6-90;
Clutch
Φ430mm diaphragm spring clutch
Suspensions
Multi-leaf spring
Front axle
5.5T Drum-type front axle
Rear axle
11T Drum-type rear axle
Steering
Power steering gear
Tyre
11R22.5
Others
Brake clearance self-adjusting, ABS, integrated chassis CAN bus instrument
Body
Air conditioner
Overhead non-independent air-conditioning
Seats
Luxurious passenger seats (45+1)
Doors
Front-opening pneumatic outward swinging door
Windows
Fully-closed bonded side-windows(semi-push-pull built-in rear windows on both sides, a semi-push-pull built-in window for the driver)
AV system
Radio
Rear-view mirrors
Luxurious and long tie-rod type wide field-of-vision rear mirrors
Floor
Artificial leather wear-resistant flooring
Others
Through / small through luggage compartment; bilateral inner luggage rack, air outlet with reading lamp; safe skylights (2 units with electric ventilator); high-mounted brake lamp.
