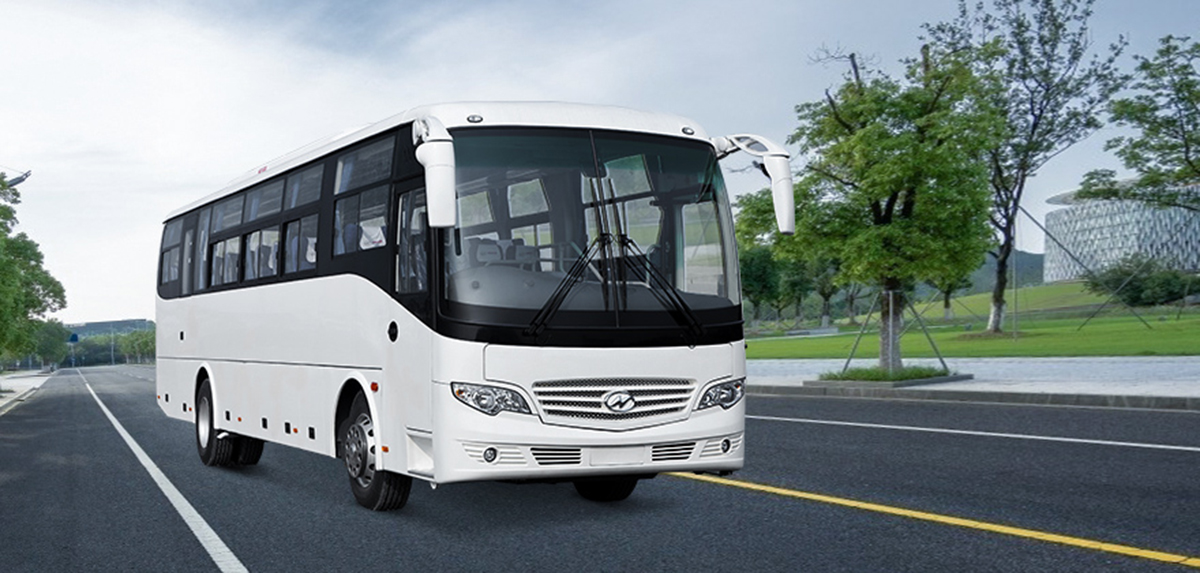

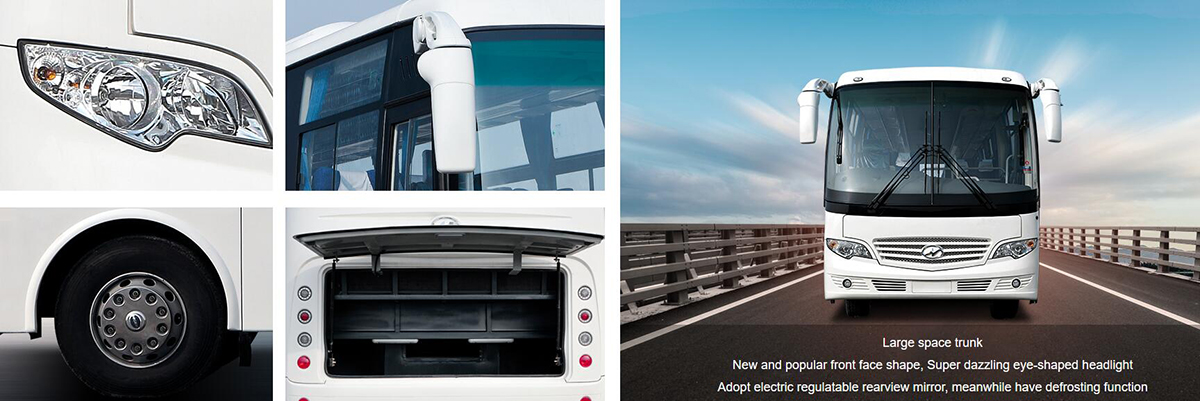

Exterior Highlights

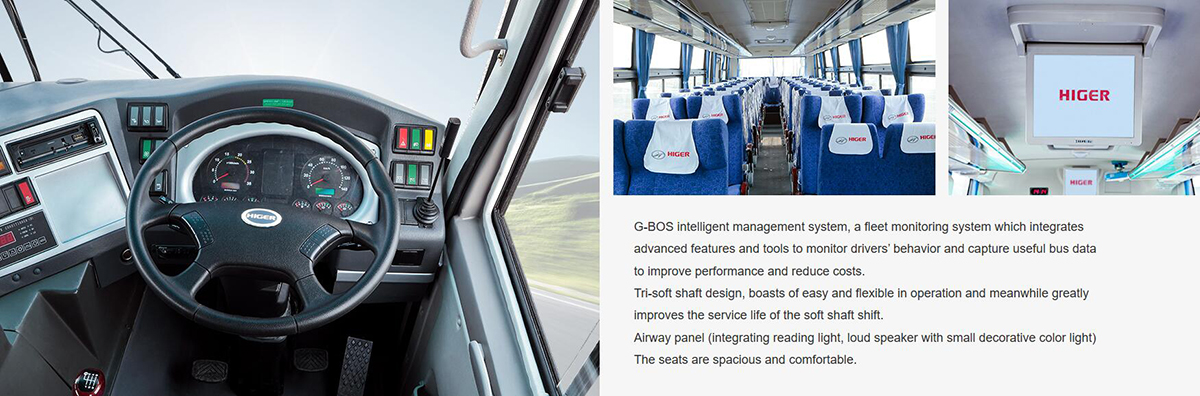

Interior Highlights
Specification
Rated total mass（kg）
16000
Fuel tank capacity（L）
300
Wheelbase(mm)
5800
Front/rear wheel track(mm)
2040/1860
Front/rear overhang(mm)
2250/3440
Minimum ground clearance(mm)
240
Approach / departure angle °
12 °/10 °
Maximum gradeability %
≥30
Maximum vehicle speed(km/h)
110
Chassis
Engine
L300 20 (300hp, Euro II)/C300 20 (300hp, Euro II)
Clutch
430mm diaphragm spring clutch
Gearbox
8JS125TA/QJS6-90
Suspension
Multi-leaf spring
Front axle
6.5T Drum-type front axle
Rear axle
11.5T Disc-type rear axle
Steering
Power steering gear
Tyre
295/80R22.5
Others
Self-adjusting arm, ABS
Body
Air conditioner
Non-independent overhead air conditioning
Seats
Non-adjustable and non-sliding high backrest
Door
Front-opening/rear-opening pneumatic outward swinging passenger-door, left-side driver’s door
Window
Side windows (upper part with push-pull aluminum frame, lower part sealed)
AV system
Radio
Rear-view mirror
Long tie-rod type rearview mirror
Floor
Artificial leather wear-resistant flooring
Othersg
Safe sunroof
