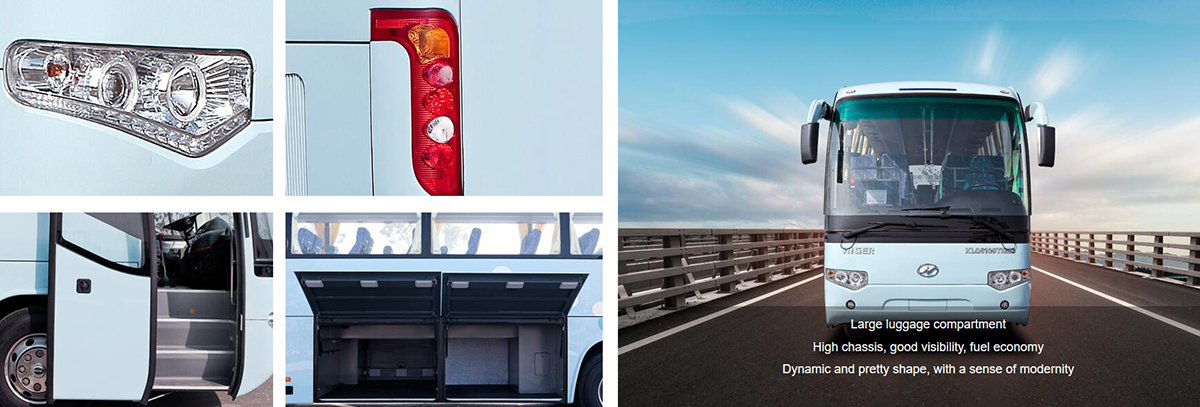

Exterior Highlights

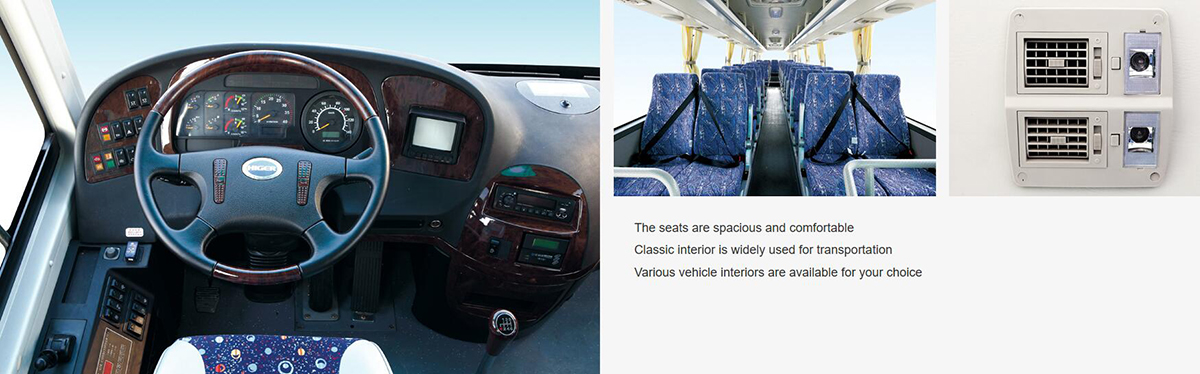

Interior Highlights
Specification
Wheelbase (mm)
5170
Wheel tread front/rear (mm)
2020/1860
Overhang front/rear (mm)
2160/3160
Minimum ground clearance (mm)
240
Approach/Departure angle °
10 °/10 °
Rated total mass
14900
Maximum speed (km/h)
115
Maximum gradability (%)
≥30
Fuel tank capacity (L)
280
Chassis
Engine + gearbox
Yuchai YC6J245-30 (245hp, China Ⅲ) + homemade 6-speed gearbox
Clutch
Φ430mm diaphragm spring clutch
Suspensions
Multi-leaf spring
Front axle
4.7T Drum-type front axle
Rear axle
10.3T Drum-type rear axle
Steering
Power steering gear
Tyre
11R22.5
Other facilities
Brake clearance self-adjusting, ABS
Body
Air conditioner
Overhead non-independent air-conditioning
Seats
Luxurious passenger seats (45+1)
Doors
Front-opening pneumatic outward swinging door
Wndows
Fully-closed bonded side-windows (semi-push-pull built-in rear windows on both sides, a semi-push-pull built-in window for the driver)
AV system
Radio
Rear-view mirrors
Luxurious and long tie-rod type wide field-of-vision rear mirrors
Floor
Artificial leather wear-resistant flooring
Other facilities
Through / small through luggage compartment; bilateral inner luggage rack, air outlet with reading lamp;
safe skylights (2 units with electric ventilator); high-mounted brake lamp.
