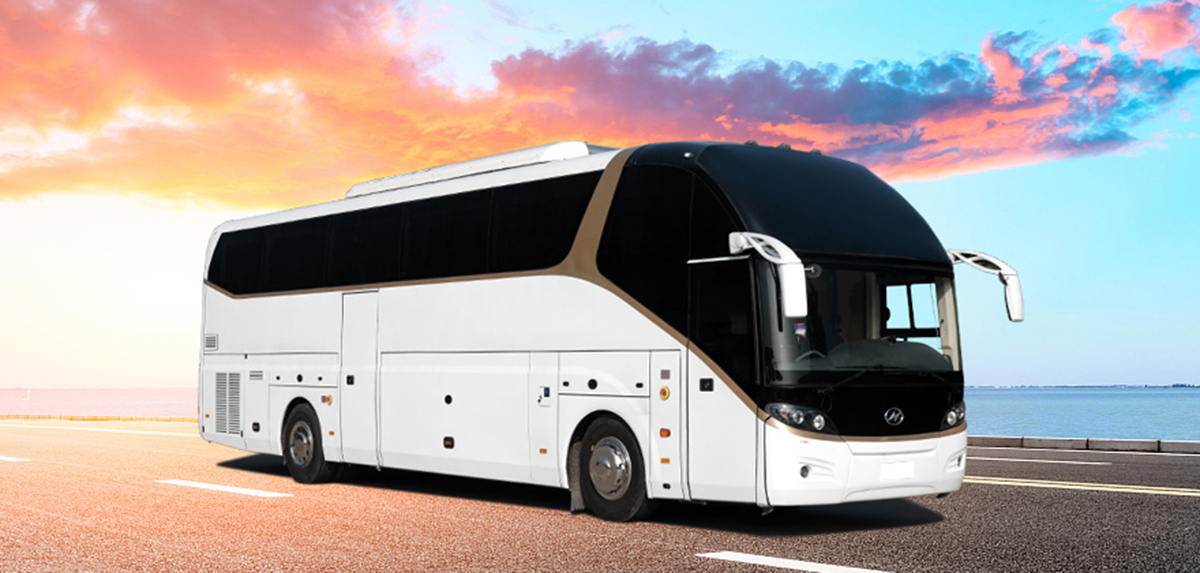

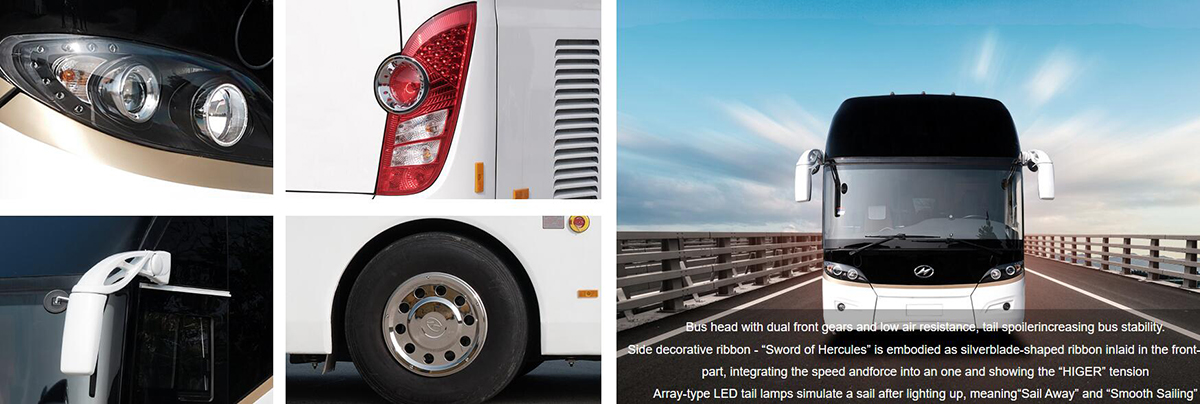

Exterior Highlights

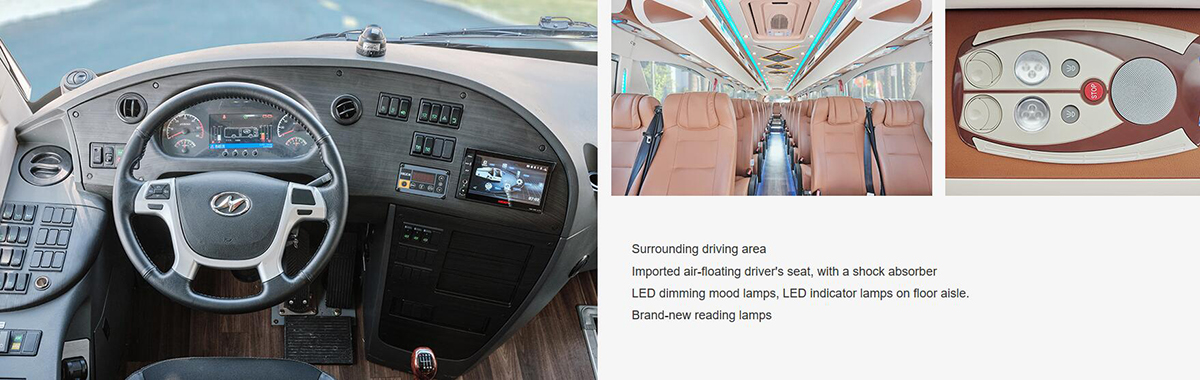

Interior Highlights
Specification
Wheelbase (mm)
6000
complete vehicle curb mass
14300
manufacturer's max. total mass
19000
seats No.
51+1+1 [two passenger doors]
engine model
Cummins ISLe340 40
cylinder number
6 cylinders
engine displacement
8.9 L
max. power
340 HP
max. torque
1425Nm/1400rpm
emission standard
Euro IV
Chassis
Clutch
SACHS (430) diaphragm spring clutch; WABCO clutch booster
Gearbox
ZF6S1610BO manual 6 speed transmission
Retarder & ABS
Telma retarder; WABCO ABS+ASR
Front axle
Dongfeng front disc axle
Rear axle
Dongfeng rear disc axle
Suspension system
front 2/rear 4 air suspension; KOMMAN
Steering system
power steering
Tyre & Wheel
295/80R22.5 tubeless tyre,spare wheel
Others
automatic slack adjuster; automatic extinguisher in engine compartment;Tire Pressure Monitoring System
Body
Air conditioner
HIGER roof mounted A/C [ BOCK compressor, 32000kcal/h ]
heater system
one heater
refrigerator
one refrigerator
audio-visal system
SD card and USB player,19' + 17' LCD; 2 microphones
Bus Reverse Monitor
color reverse monitor and buzzer
Digital Clock
digital clock with temperature and humidity
lighting system
LED floor light and step light
Curtains for side window
luxury pull-down self-locking curtain
luggage rack
luxury inner overhead luggage rack
seats
51 passenger seats; 3-point seat belt; air suspension driver seat; guide seat
floor
light brown color floor leatheroid
passenger door
front and middle outside-swing passenger door
window
fully fixed side windows, double glass, dark grey color
emergency roof exit
two emergency roof exits
rear-view
electric rear-view mirror
others
first aid kit; luxury dashboard and interior roof; cruise control; USB charger; fire extinguisher; 220V laptop charger with invertor; air horn; remote control parallel type luggage compartment door
